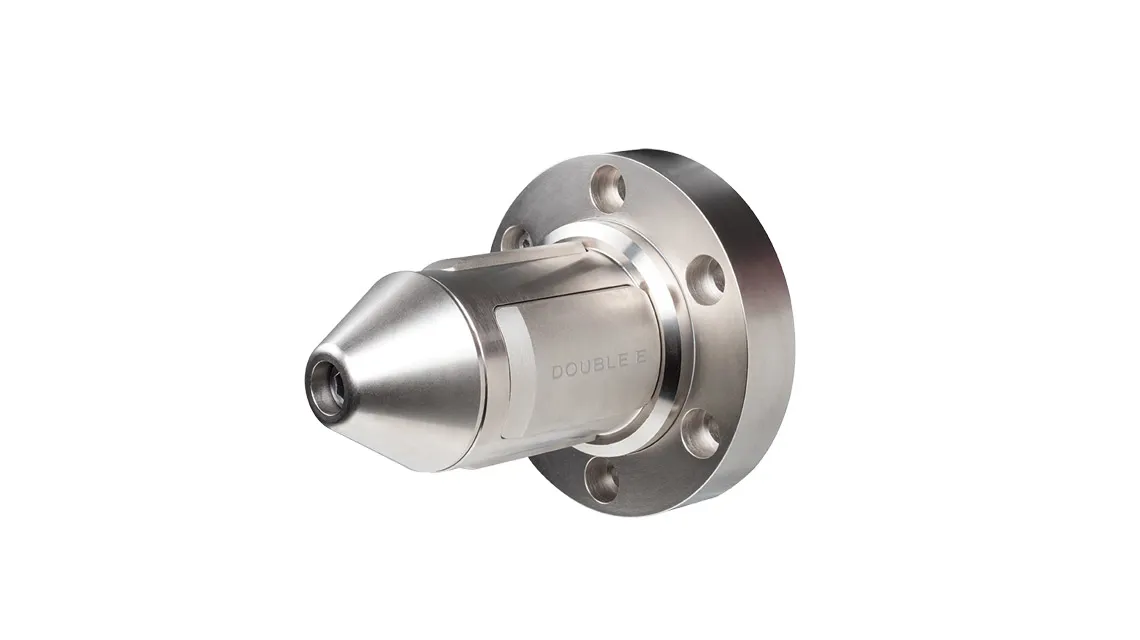

DF-2000
Hylschuck som för användning i avrullningsapplikationer.
DF-2000 vridmomentsaktiverad hylschuck
Double E:s hylschuck typ DF-2000 används i avrullningsapplikationer. Den tillämpar en patenterad rullmekanisk för vridmomentsbaserad aktivering av expanderelementen, som innebär minsta möjliga friktion och slitage i konstruktionen. På så sätt säkerställs expanderelementens koncentriska expandering över tid och innebär också en längre livslängd på chucken. Rullmekanismens funktion innebär vidare att expanderelementen greppar hylsan optimalt vid både lägre och högre banspänningar. Expanderelementen med sina stora släta ytor är dessutom mycket skonsamma mot hylsorna och deras innerväggar.
The Double E DF-2000 Torque-Activated Core Chuck
Double E's DF-2000's patented torque-activated shaftless design has made it the world's most effective and best-selling shaftless core chuck. Six precision-ground steel rollers are mechanically linked to travel up and down bi-directional ramps created by the back of the jaws and the hexagonal cam. This rolling action minimizes friction while causing expansion and retraction of the chuck’s jaws.
As a result, the chuck can be used in the lightest to heaviest tension applications. The chuck’s mechanical design eliminates the need for the sophisticated and expensive plumbing associated with pneumatic or hydraulic chucks. Rotary unions are also unnecessary with the DF–2000.
There are other chucks which are based on the torque-activated principle, but they use “sliding friction” inside the chuck for expansion. These chucks can’t overcome the friction created by the roll weight to lift and center the roll. A non-centering action results, causing roll bounce and possible jamming. Furthermore, their serrated jaws damage cores and create dust, leading to higher maintenance and more downtime.
DF-2000 hylschuck vid varierande hylsstorlekar
Vid flera olika hylsstorlekar i produktionen möjliggör Double E:s lösningar med adapter- och kombinationschuckar snabba hylsbyten i samverkan med rullställets breddinställning. För de fall där rullställets inställningsmöjligheter på bredden är begränsade är istället Double E:s snabbmonterade hylschuckar lösningen.
